Cygnus Ultrasonic Thickness Gauge

The Cygnus Ultrasonic Thickness Gauge measures the thickness of metal surfaces without the need for divers or dry docking. This thickness gauge is a great tool for NDT, UWILDs, and other inspections.

Supplier
Cygnus Instruments

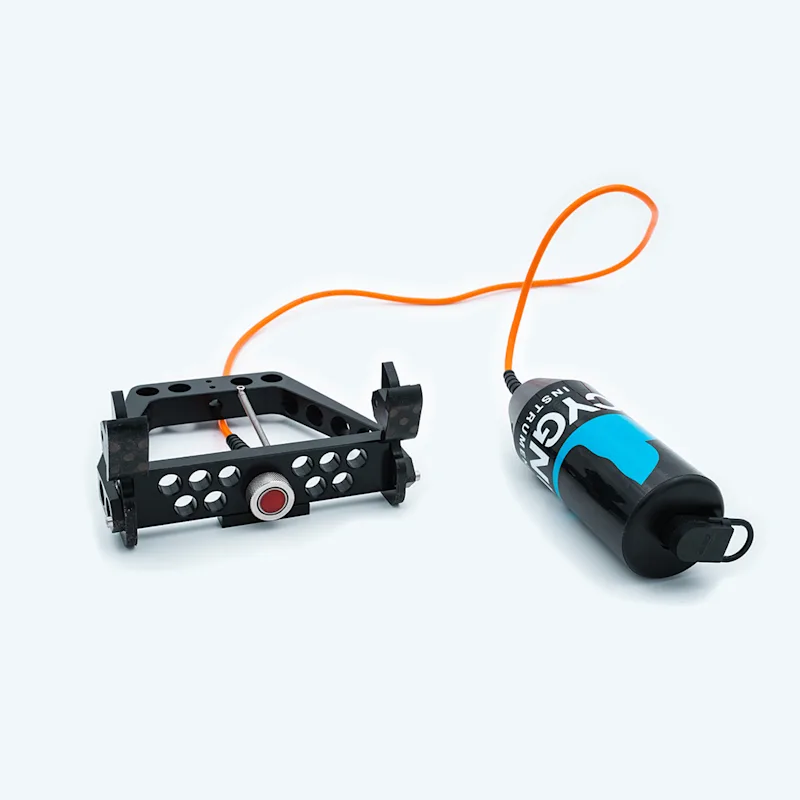

Cygnus G1 and gauge body
Quick deployment

Quick deployment

Deploy within minutes and perform your inspections efficiently to optimize your recourses.

Live Stream Inspection

Live Stream Inspection

Livestream the drone video to Microsoft Teams. Include remote viewers to collaborate during your inspection.

Reduce the use of divers

Reduce the use of divers

Become less dependent on service providers and optimize your resources. Deploy within minutes and perform your inspections in-house.

Safe and efficient inspections

With the Cygnus Ultrasonic Thickness Gauge integrated with our Blueye X3 you are able to do more than a visual underwater inspection. This user-friendly method of conducting thickness measurements will decrease time and costs of both periodic and ad-hock inspections. The X3 will reach inspection areas that are unfeasible to heavy ROVs and divers, and also clears the risks involved in inspections using divers.

Live thickness readings are displayed in the Blueye app without the need for additional software. The measurements are given with an accuracy of 0.1 mm and verified with triple-echo verification. This integration allows you to measure thickness without removing protective coatings, as the probe will measure through coatings and marine growth up to 12 mm.

Use-cases with Cygnus UT Gauge:

  • Remote inspections

  • Reveal corrosion extent

  • Conduct UWILDs and NDT

  • Inspections of hulls, propellers, tanks, pipes, and offshore constructions

Cygnus measurement in Blueye App

Technical Specifications

Cygnus Ultrasonic Thickness Gauge

The Cygnus Ultrasonic Thickness Gauge measures the thickness of metal surfaces without the need for divers or dry docking. This thickness gauge is a great tool for NDT, UWILDs, and other inspections.

Physical specifications

Diameter

62 mm

Length

150 mm

Weight

550 g

Depth rating

Tested to 500 m

Operating temperature

-10°C to 50°C

Communication & Power

Digital

RS-422

Input Voltage

7.0 to 30 V DC

Power

140 mA (max)

Technical

Measurement range in steel

3–250 mm with 2.25 MHz probe
2–150 mm with 3.5 MHz probe
1–50 mm with 5 MHz probe

Materials

Sound velocities between 1000–9995 m/s

Resolution

0.05 mm

Accuracy

0.1 mm

Standards

Designed for EN 15317

Approvals

RINA Type Approved

Environmental

RoHS, WEEE compliant
