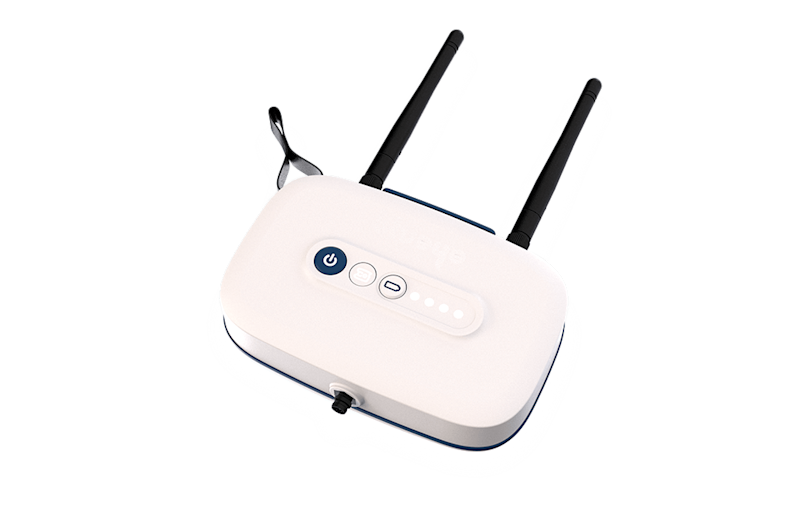

Blueye Surface Unit


Replacement Blueye Surface Unit.

Blueye Surface Unit

Surface Unit (SU)

Wireless transmitter

Wifi router for wireless connection to smartphones or tablets.
USB port for attachment of ethernet adapter for wired connection in a difficult wireless environment.

Wireless range

Range depending on the environment. At least 15 m in an open area.


Ingress protection



38 x 149 x 158 mm (LxWxH)

Operating frequency

2.4 GHz / 5.8 GHz

Max Wi-Fi distance

30 m


19.48 Wh

Operating temperature

0 to +35 °C

Charging temperature

+10 to +35 °C

Transmitter power

125 mW

Operating voltage

5 - 8.4 V

Output USB A

5 V, 400 mA

Input Micro USB

5 V, 2.1 A


Dual-band 3dBi RP-SMA Male
