The Blueye Underwater Drones

Blueye Pioneer | Underwater drone with camera

Groundbreaking technology to get your eyes below the surface. The Blueye Pioneer underwater drone offers exceptional user experience and performance.

Illustration of the Blueye Pioneer Drone - transparent and no shadow
Self-serviceable
Self- serviceable
Excellent customer support
Excellent support
A safe and fully CE and FCC certified product
Fully certified
Depth: 150 m / 500 feet
Depth 150 m
Replacable battery: minimum 2 hours
2 hrs battery
Multiple spectators
Multiple spectators Observer App
Live Streaming to Microsoft Teams
Live Streaming to MS Teams
Illustration of the Blueye Pioneer Drone - transparent and no shadow

Key Features

Full HD-camera
Full HD-camera
Record your dive with a wide angle camera (1080p/30fps).
Powerful LED Lights (3300 lumen)
Powerful LED Lights (3300 lumen)
Allows you to dive in the dark.
Thin tether
Thin tether
Durable and replaceable tether which creates minimal drag.
Automatic heading and depth
Automatic heading and depth
Ensures for a great underwater experience in rough conditions.
Bottom Diving
Bottom Diving
Smart positioning of vertical motor nozzles to avoid seafloor sand clouds.
Below 9 kg
Below 9 kg
Suitable for transportation and operatable by one person.
3 knots forward speed
3 knots forward speed
Dive in difficult conditions. Operational in up to 2 knots current.
150 m depth rating
150 m depth rating
Robust vehicle pressure tested to handle frequent dives.

Adjust app settings for your dive

Whether you are performing inspections in deep and dark oceans or in clear waters, the camera is optimized to perform in different and challenging conditions. The Blueye app allows you to control light exposure and camera hue settings. We provide you with the tools to capture high-quality images and videos.

Adjust app settings for your dive

Assisted navigation

Underwater navigation is a tricky nut to crack, and the Blueye App is designed specifically to assist you in knowing where you are headed at all times. Assisted navigation with a compass ensures minimal drifting and more precision when needed. A 3D visualization of the drone illustrates the course of the drone relative to your own.

Assisted navigation

Share video stream on multiple devices

With the additional Blueye Observer app, you can share your inspections with colleagues as they happen. Once downloaded to your iOS or Android device, simply connect to the drones WiFi network and launch the Blueye Observer app. The live video stream from the underwater drone will appear immediately.

Share video stream on multiple devices

Controller or touch - your choice

The Blueye App responds to the way you choose to control your ROV, whether that is with a controller or by touch on your iOS or Android device.

Controller or touch - your choice
The Blueye Pioneer package

Recommended Package

The Blueye Pioneer package

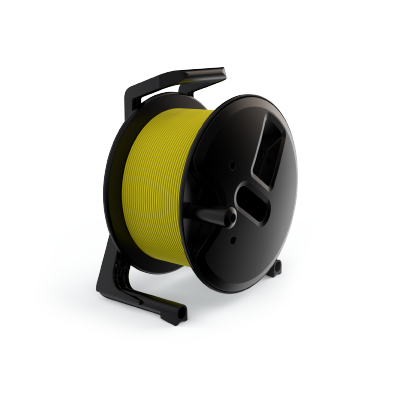

Our recommended Blueye Pioneer configuration includes the Blueye Pioneer Underwater drone, light transportation case, reel with 75 meter tether, extra Blueye Smartbattery and controller.

Configure Package See all products

Request Quote

Additional Items

Tech specs

This is the technical specifications for the Blueye Pioneer underwater drone.

DRONE

Hull design

Hydrodynamic and hydrobalanced hull for stability and performance in ocean conditions. Ruggedized exterior for impact resistance.

Dimensions

485 x 257 x 354 mm (LxWxH)

Depth rating

150 m.

Weight

9 kg.

Speed

1.5 m/s (3 knots).

Run-time

2 hrs normal operation.

Thrusters

4 powerful thrusters, 4 x 350 W.

2 rear, 1 vertical center, 1 lateral.

User replaceable.

Automation

Auto heading.

Auto depth.

Camera

Light sensitive full HD 1080p/30fps, wide angle lens.

Search Light

Powerful 3300 lumen LED lights below camera.

70 Colour rendering index (CRI).

Fittings for extra lights as payload.

Sensors

Inertial Measurement Unit (IMU) with 3-axis gyro and 3-axis accelerometer.

Depth sensor.

Magnetometer (compass).

Temperature (inside and outside).

Internal pressure sensor.

Payload

Standard fittings for payload on both top and bottom of the drone.

Software

Remote update of firmware on both drone and Surface Unit.

Storage capacity

64 GB.

Battery

96 Wh lithium ion smart battery.

User-replaceable.

SURFACE UNIT (SU)

Wireless transmitter

Wifi router for wireless connection to smartphones or tablets.

USB port for attachment of ethernet adapter for wired connection in difficult wireless environment.

Wireless range

Range depending on environment. At least 15 m in open area.

Cable

Thin and strong cable optimized for use with ocean drones.

Cable is replaceable for easy handling and upgradeable for other lenghts.

DRONE CONTROLLER
Controller

Wireless drone controller for iOS and Android smartphones and tablets.

APP
Blueye App

App for Android and iOS smartphone/tablet.

Setup & control drone; manage and download dive data and video recordings.

Blueye Observer

App for Android and iOS smartphone/tablet.

Connect additional devices and share the live video stream with multiple people.

Blueye File Transfer App

App for Windows, macOS, and Linux.

Download files to your computer.

OTHER
Charger

Charger for charging the underwater drone. Extra charger with USB ports for charging SU and drone controller.

Download tech specs

Blueye Pioneer Tech Spec Sheet

Blueye Pioneer Tech Spec Sheet

Format
application/pdf
File size
0.17 MB
Copyright
Blueye Robotics AS
Download Document
