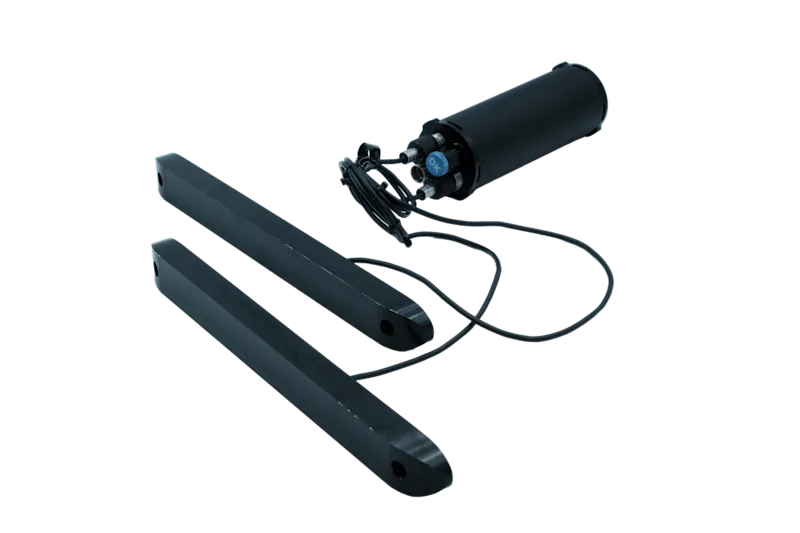

Omniscan 450 Dual Side-scan Sonar
Double Omniscan 450SS for scanning from both sides of the ROV simultaneously. 150m range.
Cerulean Sonar
Navigate with in low visibility
Get a live view of underwater structures and terrain in real time, even in dark or murky conditions. Great for safe navigation and locating objects.
Targeted scanning on demand
Instantly scan points of interest without waiting for a mechanical sweep. The ROV-operator stays in full control of where and when to scan.
Easy to mount and use
With simple cable connections and compact design, the sonar mounts easily to the Blueye ROV. Quick to set up by the pilot directly in the field, no special expertise needed.
Technical Specifications

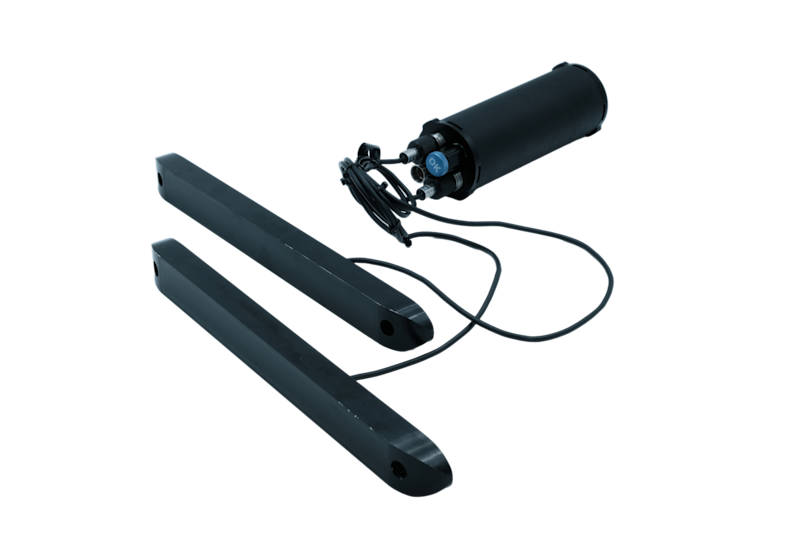

Omniscan 450 Dual Side-scan Sonar
Double Omniscan 450SS for scanning from both sides of the ROV simultaneously. 150m range.
Acoustic performance | |
Maximum Range | 150 m |
Beam Width | 0.5 deg |
Beam Height | 50 deg |
Frequency (nominal) | 450 kHz |
Range resolution | up to 1/1200th of range |
Maximum Ping Rate | 20 Hz (up to 30m range) |
Electrical interface | |
Power | 10-30 Volts, 5 watts max at idle, 10 watts max while pinging |
Data Interface | 100 Base-T Ethernet |
Internal Ethernet Switch | Yes |
Internal Electronics | Yes |
Electrical Connection | Single cable w/4 pin JST for Ethernet data + 1 wire pair for power. |
Mechanical | |
Weight in Water |
|
Max Operating Depth | 300 m |
