Newton Subsea ROV Gripper
The Newton ROV Gripper is an optional add-on to the Blueye X3 underwater drone which enhances the ROVs capability to retrieve objects, attach recovery lines, or free a snagged tether.
Blue Robotics
The affordable and robust alternative

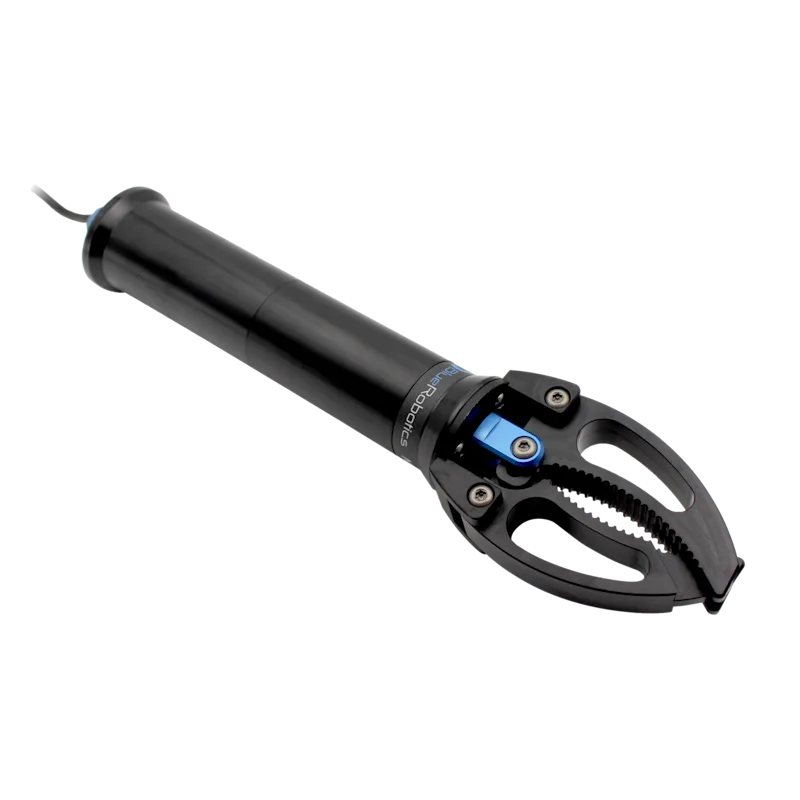

The Newton Subsea ROV Gripper is a single-function manipulator for the Blueye X3 underwater drone. The gripper has jaws driven by a linear actuator which can open to grab objects up to 2.44″ or 6.2cm in diameter, and submerge down to 300 m. The Newton gripper is a great alternative for operators wanting a more affordable, but still robust and user-friendly, gripper on their ROV.
Use-cases with the Newton gripper:
Pick up lost items
Thread ropes through heavy objects for surface retrieval
Place scientific sensors and instruments on the seabed
Technical Specifications
Newton Subsea ROV Gripper
The Newton ROV Gripper is an optional add-on to the Blueye X3 underwater drone which enhances the ROVs capability to retrieve objects, attach recovery lines, or free a snagged tether.
Mechanical Specifications | |
Grip Force (at tip) | 97 N / 22 lbf |
Grip Force (in middle) | 124 N / 28 lbf |
Push-rod Axial Load Rating | 3 kg / 6.6 lb |
Minimum Linear Piston Travel | 13.5 mm / 0.53 in |
Jaw Opening | 62 mm / 2.44 in |
Time to Open/Close | 1.6 s |
Physical Specifications | |
Housing Material | Aluminum 6061-T6 |
Pressure Rating | 300 m / 984 ft |
Overall Length (Closed) | 294 mm / 11.57 in |
Overall Length (Open) | 300 mm / 11.81 in |
Body Primary Diameter | 35 mm / 1.38 in |
Weight in Air (w/ cable) | 616 g / 21.9 oz |
Weight in Water (w/ cable) | 260 g / 9.2 oz |
