Blueye X3 Equipment
Laser Tools Sea Beam Scaling Laser
Underwater Lasers are intended to be used by ROVs (Remote Operate Vehicles) using video images to take general measurements. By paralleling two laser beams that are calibrated for set distances, accurate measurements from video images are possible.
LaserTools
Compatible with all Blueye ROVs
The laser is compatible with all Blueye ROV models. Pioneer, Pro, X1 and X3.
Integrated in the Blueye app
No need for 3-party software. The app will detect the connected payload when a Smart Connector is plugged in one of the ROVs Guest Ports.
Easy to mount and use
With simple cable connections and compact design, the laser mounts easily to the Blueye ROV. Quick to set up by the pilot directly in the field, no special expertise needed.
Underwater measurements
The Sea Beam projects two lines 75 mm apart onto underwater objects. This provides a precision scale for size references when viewed by eye or camera.
Technical Specifications
Laser Tools Sea Beam Scaling Laser
The Sea Beam projects two lines 75 mm apart onto underwater objects. This provides a precision scale for size references when viewed by eye or camera.
Hardware Specifications | |
Parallel laser width | 75 mm |
Dimensions | 63.5 mm L x 101.6 mm W x 25.4 mm H |
Weight in water | 90 g |
Power | CR123A 3V Lithium Battery with 8 hours of continuous use, or powered by drone |
Software Specifications | |
App control | On/off from Blueye App when mounted on Blueye X3 with cable. |
-

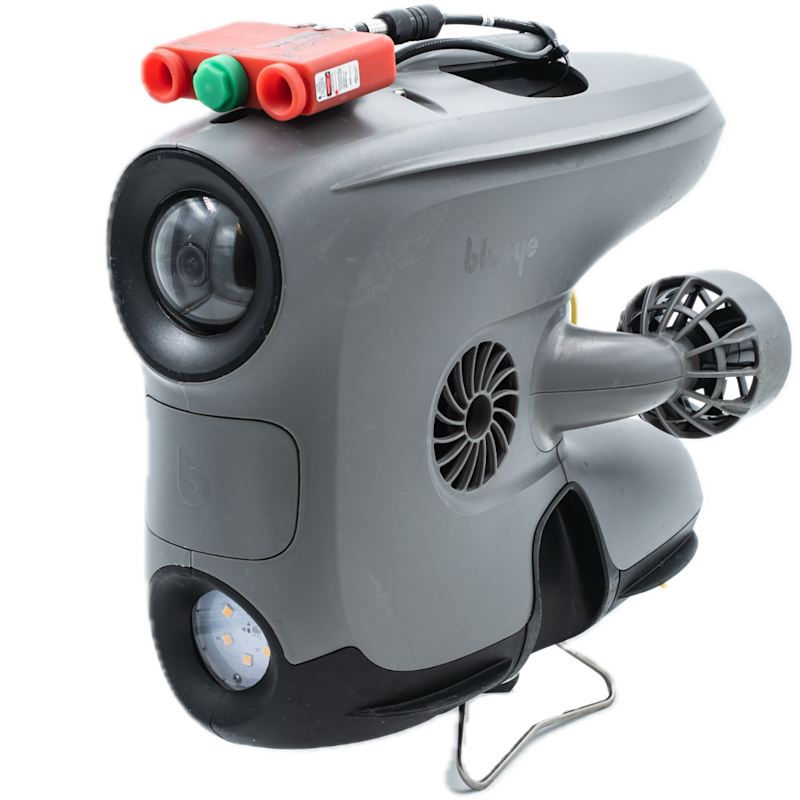

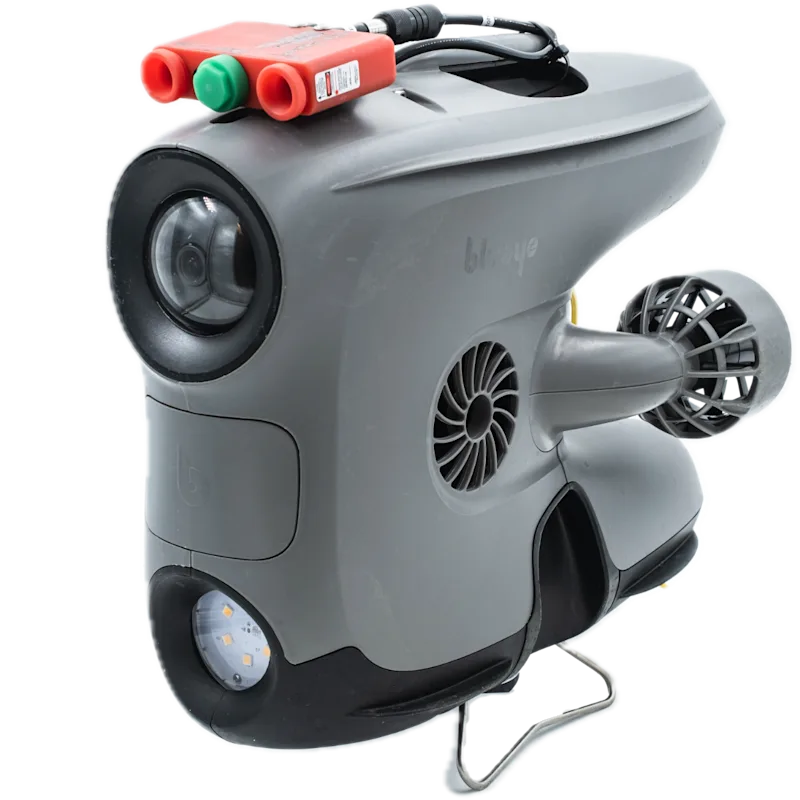

![blueye-x3-frontright-lasertools-sea-beam-scaling-laser]()
