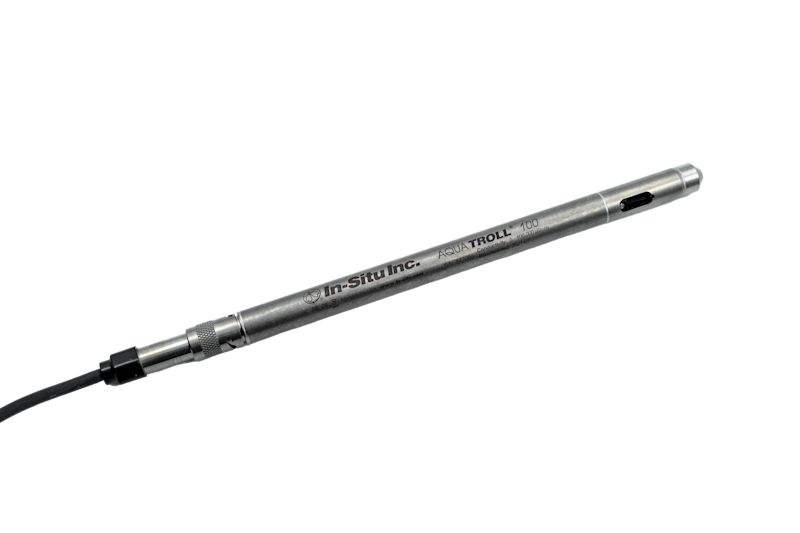

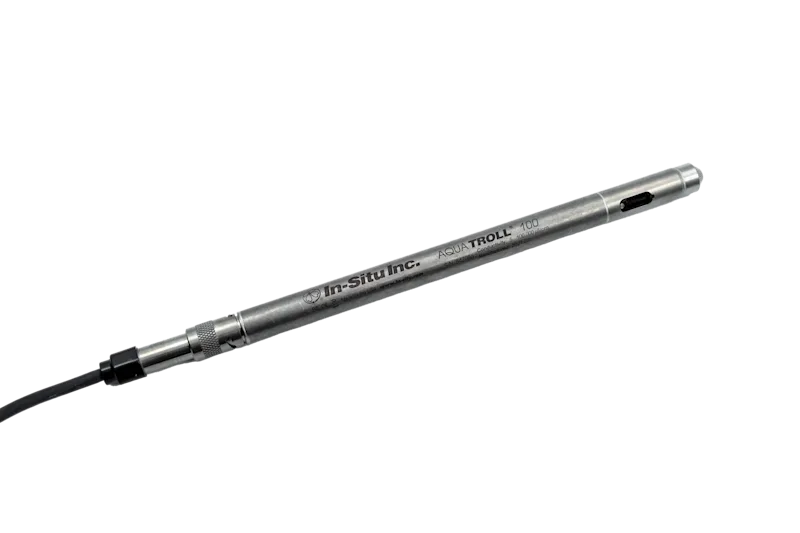

Aqua TROLL 100 Data Logger

Measure and record temperature and conductivity with the Aqua TROLL 100. See live readings in the Blueye App and export dive logs with insightful plots of the parameters. See all technical details in the In-Situ spec sheet.

Physical details probe
Length	315 mm / 12.4 in
Diameter	183 mm / 0.72 in
Weight	188 g / 0.41 lb
Depth rating	340 m / 1,153 ft
Operating temperature	-5°C (23°F) to 50°C (122°F)
Material	Titanium body and sensors, Delrin® nose cone, and PVC conductivity cell
Supported parameters	Temperature Conductivity
Reading rate	New readings every second

Temperature sensor
Method	EPA Method 170.1
Accuracy & Resolution	Accuracy: ±0.1° C. Resolution: 0.01° C or better
Units of measure	Celsius or Fahrenheit
Warranty	2 years. Up to 5-year (total) extended warranties available.

Conductivity sensor
Type	Balanced 4-electrode cell
Methods	EPA Method 120.1; Standard Methods 2510
Range	0 to 100,000 μS/cm
Accuracy	± 0.5% of reading + 1 μS/cm when reading less than 80,000 μS/cm ± 1.0% of reading when reading above 80,000 μS/cm
Resolution	0.1 μS/cm
Parameters supported	Actual conductivity Specific conductivity Salinity Total dissolved solids Resistivity Density (water salinity)
