Blueye X3 Equipment

Cygnus Ultrasonic Thickness Gauge

The Cygnus Ultrasonic Thickness Gauge measures the thickness of underwater surfaces without the need for divers or dry docking. This thickness gauge is a great tool for NDT, UWILDs, and other inspections.

Supplier
Cygnus Instruments
Cygnus gauge and probe
Readings in app

Readings in app

Display live thickness readings in the Blueye app without additional software.

Live Stream Inspection

Live Stream Inspection

Livestream the drone video to Microsoft Teams. Include remote viewers to collaborate during your inspection.

Efficient reporting

Efficient reporting

Generate an inspection report in the Blueye App, and share the document with your colleagues and supervisors directly from your mobile device.

Safe and efficient inspections

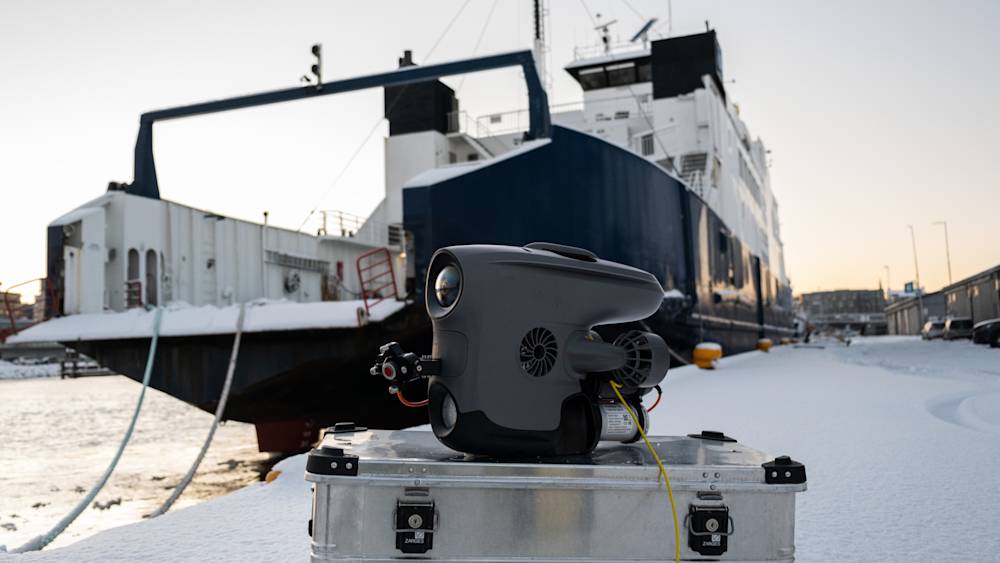

With the Cygnus Ultrasonic Thickness Gauge integrated with our Blueye X3, you are able to do more than a visual underwater inspection. This user-friendly method of conducting thickness measurements decreases time and costs of both periodic and ad-hock inspections. The X3 will allow you to reach inspection areas where using heavy ROVs and divers is not feasible.

Live thickness readings are displayed in the Blueye App without the need for additional software. The measurements are given with an accuracy of 0.1 mm and verified with triple-echo verification. This integration allows you to measure thickness without removing protective coatings, as the probe will measure through coatings and soft marine growth.

Use cases for Cygnus UT Gauge:

  • Remote inspections

  • Reveal corrosion extent

  • Conduct UWILDs and NDT

  • Inspections of hulls, propellers, tanks, pipes, docs, rigs, and other constructions

Cygnus measurement in Blueye App
Help Center Laptop

Technical Specifications

Cygnus Ultrasonic Thickness Gauge

The Cygnus Ultrasonic Thickness Gauge measures the thickness of underwater surfaces without the need for divers or dry docking. This thickness gauge is a great tool for NDT, UWILDs, and other inspections.

Physical

Diameter

62 mm

Length

150 mm

Weight

550 g

Depth rating

500 m

Operating temperature

-10°C to 50°C

Communication & Power

Digital

RS-422

Input Voltage

7.0 to 30 V DC

Power

140 mA (max)

Measurement range in steel

2.25 MHz probe

3-250 mm

3.5 MHz probe

2-150 mm

5 MHz probe

1-50 mm

Technical

Materials

Sound velocities between 1000–9995 m/s

Resolution

0.05 mm

Accuracy

0.1 mm

Standards

Designed for EN 15317

Approvals

RINA Type Approved

Environmental

RoHS, WEEE compliant

Documents

Document Icon

Cygnus MINI ROV Operation Manual

Format
application/pdf
File size
1.83 MB
Download Document
