Blueye X3 Equipment

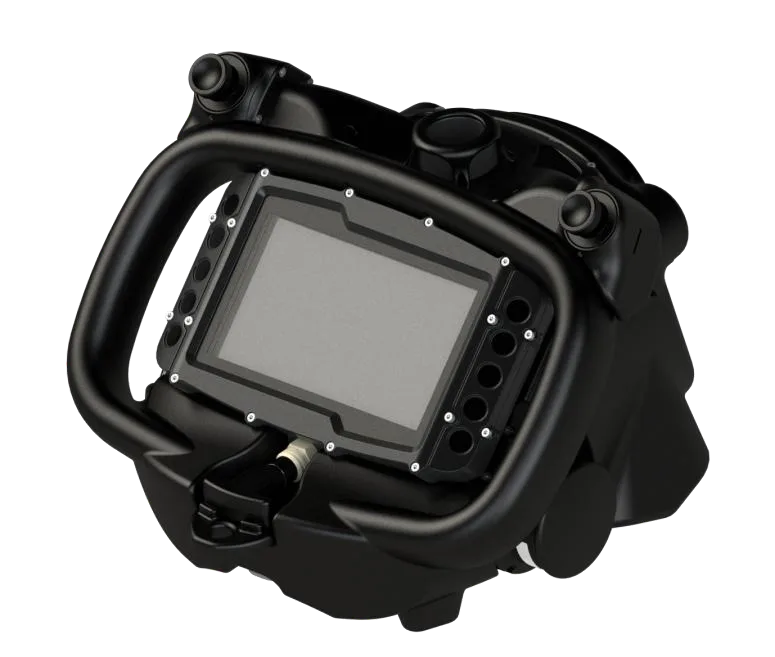

ArtemisHHC System
Diver handheld system from Blueprint Subsea integrated and fitted for the Blueye ROV.
Blueprint Subsea
Offering real-time multibeam sonar imaging and GNSS navigation capabilities. Designed for military and Search And Rescue (SAR) divers.
Accurate GNSS navigation capability
Unparalleled sonar imaging for target detection and identification
Text communication between divers and the surface
Intuitive user interface
Diver tracking for improved safety
Plan, record, and review mission data with ease
The ArtemisHHC can be equipped with an Oculus multibeam imaging sonar. The ArtemisHHC is additionally fitted with a camera and dive-light for image collection and a communication and diver tracking beacon for improved diver safety. All sensor data is logged throughout the dive and available to view through NavPoint on returning to the surface.
Technical Specifications

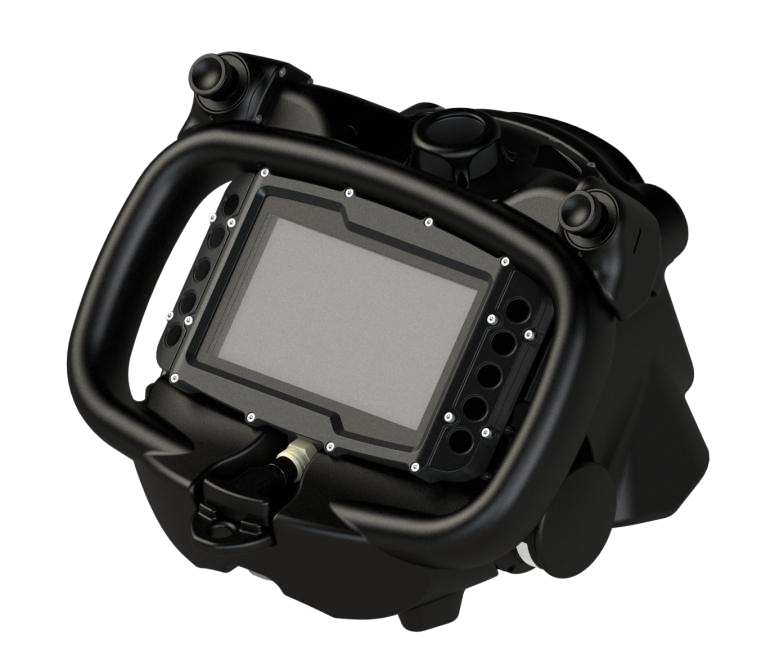

ArtemisHHC System
Diver handheld system from Blueprint Subsea integrated and fitted for the Blueye ROV.
Mechanical | |
Dimensions | 365mm (L) x 340mm (W) x 220mm (H) |
Weight | -10.5kg (max) in Air, ~0.25kg (max) in Water |
Depth Rating | 100 m |
Temp. Range (operating) | -10°C up to +45°C |
Electrical | |
Screen | 7” 1024 x 600 Pixels, Adjustable Backlight |
Data logging | 512Gb Internal Solid State Drive, 32Gb External Drive |
Sensors | Pressure, Temperature, Attitude/Heading |
User interface | Dual Joystick & Trigger with 10 x Piezo Buttons |
GNSS Navigation | |
GNSS receiver | 72-Channel GPS L1 C/A, GLONASS L10F, BeiDou B1l Galileo E1B/C. |
Battery | |
Battery chemistry | NiMH / Li-ION |
Operating time | 6-8 Hours Typical Use (NiMH) / 16-20 Hours Typical Use (Li-ION) |
Charging time | Approx. 4 Hours From Fully Discharged State |
Charger supply | 90-264V AC Mains at 50-60Hz |
Messaging and tracking | |
Acoustic Range | 1km Radius Horizontal, 1km Vertical (Hemispherical) |
Communications | 24-32kHz, 100 Baud |
Messaging | Pre-Canned or Free Text Bidirectional Acoustic Messages |
Positioning | Position Sharing Between 5 Consoles and Surface Beacon |
ROV Interface Module | |
Interfaces | Fibre or DSL, Custom |
Control | 6-axis ROV Control, 2-axis Manipulator Control |
Sensor Output | Camera, Oculus Sonar Displayed on Console |
