Blueye X3 Equipment
831L Pipe Profiling Sonar
The 831L sonar is mounted in-front of the Blueye X3 and scans in 360 degree pattern to capture the profile of the pipe. The PipeSonarL software produce a 2D profile of a pipe or tunnel up to 12 meters in diameters. During inspection this allows your to see the ovality of the pipe, detect defects or measure sediment build up.
The DVL A50 can be combined with the PipeSonarL software to act as a cable counter, giving you the data you need to produce a 3D model of the pipe.
Imagenex

Control asset integrity
Capture visuals, measure material integrity and report status of critical assets.
360° pipe profiling
Capture 2D and 3D data from inside pipes and tunnels.
Easy to mount and use
With simple cable connections and compact design, the sonar mounts easily to the Blueye ROV. Quick to set up by the pilot directly in the field, no special expertise needed.
Pipe and tunnel inspection in a new compact form factor
The Pipe Profiling Sonar can be used to capture a 2D or 3D profile of a submerged pipe or tunnel to detect defects, document its shape, or measure sediment build up.
A DVL can be used to provide precise odometer data to the Pipe Profiling Software, which will display how far into a pipe or tunnel you have traveled.
The traveled distance, combined with the sonar measurements, can be used to record a 3D point cloud of your pipe or tunnel. The point cloud can be refined and visualized using open source software such as Cloud Compare, offering you a new level of detail and overview of your most critical underwater assets. All from a compact, one person operable mini ROV with unmatched user friendliness and robustness.
Use cases for the 831L Pipe Profiling Sonar
Profiling
Pipeline inspection
Hydropower tunnel and pipe inspection
Create 3D point-clouds from pipes
Scientific Research


Technical Specifications
831L Pipe Profiling Sonar
High performance Pipe Profiling Sonar that scans 360° in 1.3 sec (up to 1 m range). Low power consumption. Operates from 0.125 m to 6 m operation. Compact size suitable for Blueye X3.




Hardware Specifications | |
Frequency | 2.25 MHz |
Transducer | Profiling type, fluid compensated |
Transducer Beam Width | 1.4° conical |
Range Resolution | 0.5 mm |
Min. Detectable Range | 50 mm (~2”) |
Max. Operating Depth | 1000 m |
Power Supply | 20 – 32 VDC at less than 5 Watts |
Dimensions | 61 mm (2.4”) diameter x 347mm (13.64”) overall length |
Weight in Air | 1.2 kg (2.6 lbs) |
Weight in Water | 0.4 kg (0.8 lb) |
Materials | 6061-T6 Aluminum & Polyurethan |
Finish | Hard Anodize |
Blueye Integration | Skid mounted underneath Blueye X3 with buoyancy to make the sonar neutral in water |
Software Specifications | |
PipeSonarL.exe | v1.0.3.0 |
Windows™ Operating System | Windows™ XP, Vista, 7, 8, 10, 11 |
Mode | Polar |
Range Scales | 0.125 m, 0.25 m, 0.50 m, 0.75 m, 1 m, 2 m, 3 m, 4 m, 5 m, 6 m |
Train Angles | Continuous rotation, 9° increments |
Sector Size | 0° – 351°, 9° increments, or Continuous rotation |
Step Size | 0.9° |
Grid Types | Polar and rectangular |
File Format | (filename).31L, with ability to export to .xyz point clouds |
Blueye Integration | Blueye SDK scripts to publish the DVLA50 odometer as cable counter to PipeSonarL for 3D point cloud generation |
Documents

831L Pipe Profiling Specs Rev 5
Imagenex Model 831L Digital Pipe Profiling Sonar Specification.- Format
- application/pdf
- File size
- 0.09 MB

Imagenex 831L Pipe Profiling Sonar User Manual
Software User Manual for the PipeSonarL software for use with the Imagenex 831L sonar.- Format
- application/pdf
- File size
- 0.6 MB
Related products: Sonars

Blueprint Subsea
Oculus M750d Dual-Frequency Multibeam Sonar

Blueprint Subsea
Oculus M1200d Dual-Frequency Multibeam Sonar

Blueprint Subsea
Oculus M3000d Dual-Frequency Multibeam Sonar

Blueprint Subsea
Oculus C550d Dual-Frequency Multibeam Imaging Sonar

Tritech International Ltd
Micron Gemini Multibeam Sonar

Impact Subsea
ISS360 Sonar

Blue Robotics
Ping Sonar Altimeter and Echosounder

Cerulean Sonar
Omniscan 450 Compact Imaging Sonar

Imagenex
831L Pipe Profiling Sonar
-
x3-831l-front
-

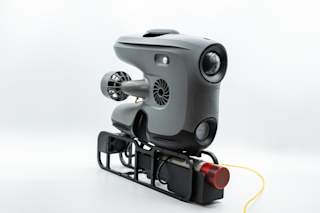

x3-831l-front-left
-

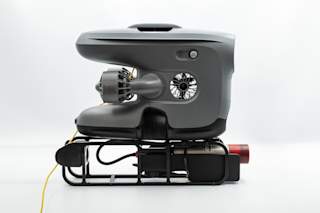

x3-831l-left
-
x3-831l-back-left
-

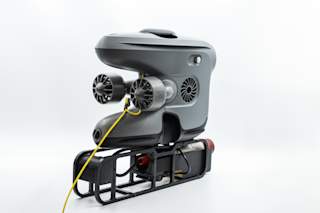

x3-831l-back
-
x3-831l-back-right
-
x3-831l-right
-

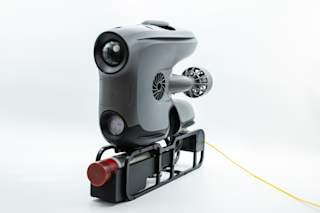

x3-831l-front-right
