Blueye Drone Payload

Micron Gemini Multibeam Sonar

The Micron Gemini fuses Tritech's Gemini multibeam technology with Tritech's Micron technology to create the world's smallest multibeam imaging sonar. It has a 90° horizontal field of view and a range of 50m. It has a speed of up to 20Hz, which makes it capable of recreating environments in real-time. Another advantage of this sonar is the compact size and light weight which does not affect the driving characteristics of the ROV.

Supplier
Tritech International Ltd

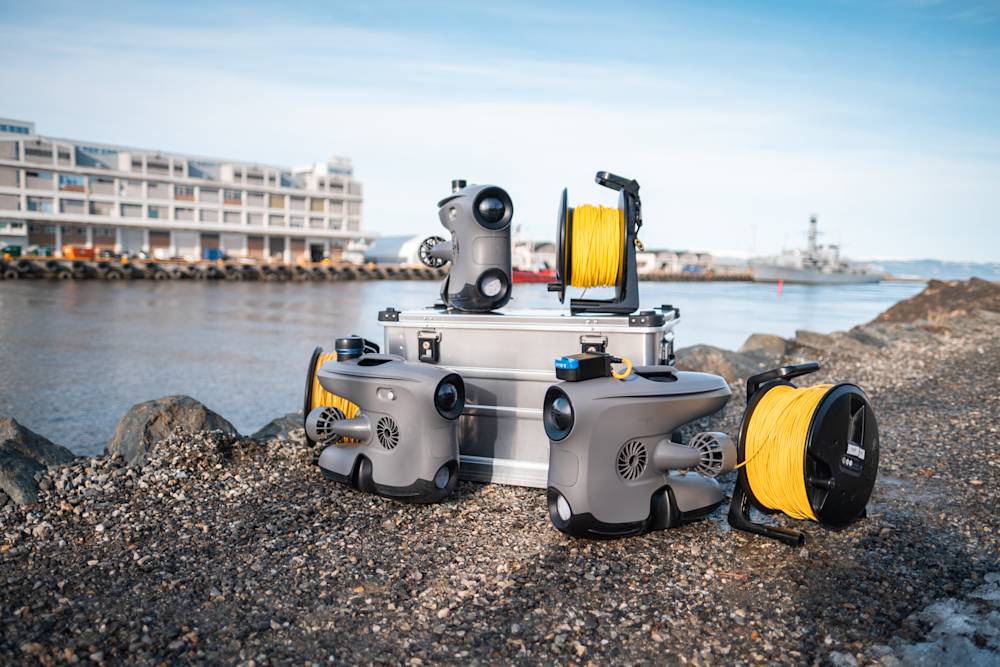

Compatible models
X3, X3 Ultra, X7
Gemini 720im Product Picture

Blueye Explains / Episode 29

Multibeam in-app viewer

Software Engineer Juan Pablo Pino Bravo explains the multibeam in-app viewer

See all episodes

Sonar mosaic

Turn sonar sweeps into a map of the seabed

Stitch the multibeam recordings in a project into one top-down acoustic map. Every ping is placed from the drone’s position and heading in the dive log, overlapping fans are aligned automatically, and the finished mosaic sits georeferenced on the map — for your team and everyone you share the project with.

  • Built from the .mbez recordings and dive logs you already upload
  • Overlapping fans aligned by image matching, with the transits between survey stations left out
  • Adjust palette, contrast, and resolution live — processing runs on your own GPU, right in the browser
  • Shown on the project map, on dives opened from the project, and on share links
  • Download a georeferenced image, or export it as a custom map layer for the project or organisation

Read more about Sonar Mosaic

Animation from Blueye Cloud: a sonar mosaic of a harbour seabed builds up fan by fan along the drone's track, on top of a satellite map.

Benefits

  • Lightweight and compact

  • 90° horizontal field of view

  • Low power

Features

  • 20 Hz update rate

  • 300 m or 750 m depth rate

  • CHIRP & CW processing

  • Mounting kits supporting upward and downward tilt

Gemini720imBlueprint
Help Center Laptop

Technical Specifications

Micron Gemini Multibeam Sonar

Having a 90° horizontal field of view and 50m range, with an update rate up to 20Hz, the Micron Gemini brings real-time imaging to places where multibeam was never possible before.

Download
Gemini 720im Product Picture
Technical specifications:

Compatibility

Compatible ROV models

X3, X3 Ultra, X7

Acoustic Specifications

Operating frequency

720 kHz

Angular resolution

2.34° acoustic, 0.7° effective

Range

0.2 m to 50 m

Number of beams

128

Horizontal beam width

90°

Vertical beam width

20° (±10° about horizontal axis)

Update rate (typical operation)

3 to 20 Hz (range dependent)

Range resolution

8 mm

Mode of operation

CW of CHIRP

Speed of Sound

Adaptive beamforming based on the user-specified speed of sound

Integrated Sensors

Depth

Integrated pressure sensor

Temperature

Integrated temperature sensor

Attitude and Heading

AHRS sensor

Interface specifications

Supply voltage

12 to 48 V DC

Power requirement

4.5 to 17 W (7.5 W average)

Main port protocol

Ethernet (100 Base-T)

Connector type

Blueye Smart Connector

Physical specification

Depth rating

300 m or 750 m

Weight in air

0.429 kg

Weight in water

0.240 kg

Operating temperature

-10 to +35°C

Storage temperature

-20 to +50°C
